A Guide to Efficient Ship Route Planning with ECDIS

Updated: Dec 13

Are you still using old-school paper charts for ship route planning? It's time to switch to Electronic Chart Display and Information System (ECDIS) technology. ECDIS is now a must-have for most ships, thanks to SOLAS regulations.


A ship's captain planning the voyage on ECDIS
A ship's captain planning the voyage on ECDIS

It's key to know how this advanced system can change your voyage planning for the better.


ECDIS has evolved a lot since it first came out. It now keeps your charts up to date and helps with better passage planning. By combining tools like radar and GPS, ECDIS gives you a clearer view of your surroundings. It also updates you on hazards in real-time, making your journey safer and smoother.


This guide will take you through the world of ECDIS route planning. We'll look at its main parts, the perks, and how to use it right. You'll learn how to gather important data and find the best routes for saving fuel and cutting costs. Get ready to unlock the full potential of this powerful tool.


Key Takeaways

  • ECDIS is mandatory for most ships under SOLAS regulations, replacing traditional paper charts

  • ECDIS integrates navigational aids and provides real-time updates for enhanced safety and efficiency

  • Effective ECDIS route planning involves considering key elements such as route, route check, parallel indexing, and no-go areas

  • ECDIS route planning should align with company requirements and industry guidelines

  • Optimizing routes using ECDIS can lead to significant fuel savings and reduced operational costs


Understanding ECDIS: The Basics

The Electronic Chart Display and Information System (ECDIS) has changed the way ships navigate. It gives sailors a powerful tool for safe and efficient trips. ECDIS uses real-time ship data and electronic charts to improve awareness and decision-making on the bridge.


What is ECDIS and How Does it Work?

ECDIS is a computer system for navigation that meets International Maritime Organization (IMO) standards. It shows electronic charts and combines data from GPS, radar, and AIS. This gives a full view of the ship's location, course, and the area around it. With ECDIS, officers can plan routes, track progress, and make smart decisions for safety and efficiency.


The Evolution of ECDIS Technology

ECDIS technology has seen big improvements since it started. Updates now focus on making the software, hardware, documentation, and practices better. These changes have made ECDIS a key tool for modern navigation, with many ships using it as their main navigation system.


Key Components of an ECDIS System

An ECDIS system has important parts that work together for accurate navigation:

  • Electronic Navigational Charts (ENCs): These are the digital maps that show water depths, hazards, and navigation aids.

  • Position Sensors: GPS, gyrocompass, and speed log update the ship's location and movement on the ECDIS.

  • Voyage Planning Tools: Officers use these to plan, change, and check routes, considering weather, tides, and ship details.

  • Alarm Systems: These alert the crew to dangers, like going off course or getting too close to shallow water.


A navigator using a touch screen on an ECDIS
A navigator using a touch screen on an ECDIS

ECDIS uses these parts to improve safety, plan better routes, and give real-time updates for important decisions. As ECDIS keeps getting better, it's vital for sailors to know the latest in electronic charts and navigation tools.


The Importance of Efficient Route Planning in Maritime Operations

In the maritime world, planning efficient routes is key for safe, cost-effective, and rule-following operations. Thanks to ECDIS, planning routes are now more precise and efficient. This helps ship operators make safer choices, cut down on risks, use less fuel, and follow global rules.


Enhancing Safety and Reducing Risks

Planning routes well makes ships safer and lowers risks. ECDIS helps with this by planning routes in detail, figuring out distances and hazards. It uses the latest Electronic Navigational Charts (ENCs) and real-time weather info to spot and dodge dangers. This keeps the crew and ship safe.



Optimizing Fuel Consumption and Costs

Good route planning is also key for saving fuel and cutting costs. By looking at weather, currents, and ship performance, operators can find the best routes. This saves money and helps the environment by using less fuel.

Route Planning Method

Weather Updates per Day

Early days of shipping

1 bulletin per 24 hours

Weather fax

2 to 4 updates, depending on ship's location

Onboard routing software

Real-time weather information and forecasts

Ensuring Compliance with International Regulations

Following global rules is a must in maritime navigation. The SOLAS Convention and IMO Resolution A.893-21 set out how to plan routes. Using ECDIS for planning and managing traffic helps operators stick to these rules. This avoids legal trouble and keeps safety and professionalism high.


Planning routes well is crucial for maritime success. With tools like ECDIS and weather optimization, operators can boost safety, cut risks, save fuel, and follow global rules. This leads to better and more profitable shipping.


Preparing for Voyage Planning with ECDIS

Getting ready for safe and efficient nautical passage planning with ECDIS is key. First, gather all the needed data from different sources, just like with traditional paper charts. This info is vital for picking the best route that follows company rules and industry laws.


Gathering Essential Data and Information

For voyage planning, navigators need to collect and look over a lot of information. This includes:

  • Chart catalogues and Notices to Mariners

  • Sailing directions and pilot books

  • Port Distance calculating software or tables

  • Ocean Passages of the World

  • Tide Tables and Tidal stream information


Considering Environmental Factors and Weather Conditions

When organizing a voyage, considering the environment and weather is crucial. These elements can significantly impact the safety and efficiency of the journey. Therefore, utilizing the most recent weather forecasts and ocean data in the planning process is essential.


Key environmental factors to consider include:

Factor

Description

Impact on Voyage Planning

Wind

Speed and direction of wind

Affects vessel stability and fuel consumption

Waves

Height, period, and direction of waves

Influences vessel motion and speed

Currents

Speed and direction of ocean currents

Impacts vessel speed and course over ground

Visibility

Presence of fog, rain, or other conditions affecting visibility

Determines safe speed and lookout requirements


By thinking about these environmental factors and adding them to the planning, navigators can make safer and more efficient routes. This helps reduce risks and improve performance.


Proper preparation is the foundation of successful nautical passage planning. By gathering essential data, consulting with maritime experts, and considering environmental factors, navigators can create robust and efficient voyage plans that enhance safety and compliance.

Creating a Route in ECDIS

Selecting Waypoints and Defining the Track

The first step in making a route in ECDIS is picking waypoints and setting the track. Navigators use the graphical editor to mark waypoints along the desired path. They make sure it meets company rules and industry standards. This process is easy and quick, allowing for quick changes and tweaks using the table editor for better accuracy.


When picking waypoints, navigators should consider:

  • Safe distances from hazards

  • Traffic separation schemes and recommended routes

  • Weather and environmental factors

  • Fuel efficiency and optimal speed


Setting Safety Parameters and Alarms

After defining the route, navigators set safety parameters and alarms. These follow company policies and the master's requirements. ECDIS lets you easily set these limits. It gives visual and sound alerts if the vessel goes off course.


Important safety settings in ECDIS include:

  1. Depth contours and safety depths

  2. No-go areas and danger zones

  3. Wheel-over positions and turning radius

  4. Under keel clearance and squat calculations


Incorporating Tidal and Current Data

To make the route safer and more accurate, navigators add tidal and current data to ECDIS. This info is key for planning the best times for arriving or leaving port, and for keeping enough under keel clearance in shallow waters. By using real-time tidal and current data, ECDIS helps adjust the route to changing conditions. This keeps the passage safe and efficient.

Data Type

Importance in Route Planning

Tidal heights and times

Ensures safe navigation in shallow waters and optimal port arrival/departure times

Current direction and speed

Affects vessel speed and course, requiring adjustments to maintain efficiency

Tidal streams and currents

Influences vessel movement and requires consideration when planning maneuvers

By using ECDIS' advanced features and important data, navigators can make safe, efficient, and compliant routes. The mix of voyage planning software and electronic chart display has changed ship navigation. It ensures a higher level of safety and operational excellence in the maritime industry.


A voyage being planned by a ship navigator
A voyage being planned by a ship navigator

Conducting Route Checks and Safety Analysis

After making a route in ECDIS, it's key to check it carefully to make sure it's safe and follows company rules. This means looking for dangers, spotting risks, and making changes to avoid them. ECDIS's advanced tools help sailors make their routes better and safer.


Verifying Route Compliance with Company Policies

Before sailing, it's important to check the route meets the ship's needs and company rules. This means checking the depth of the water, the ship's clearance, and other important details. ECDIS lets users set safety levels that fit the ship's specific needs, making sure the route is right for the vessel.


Identifying Potential Hazards and Risks

The "Route Check" or "Safety Check" feature in ECDIS is an excellent tool for identifying hazards along the planned route. It examines factors such as:

  • Water depth and safety contours

  • Prohibited areas and restricted zones

  • Navigational hazards (e.g., wrecks, obstructions)

  • Traffic separation schemes and shipping lanes


Sailors must give careful consideration to any warnings from the Route Check. These alerts indicate areas where the route could be hazardous or violate regulations, assisting sailors in making informed decisions and steering clear of dangers.

Safety Parameter

Description

Safety Contour

The minimum depth contour that the vessel can safely navigate, based on draft and UKC

Safety Depth

The minimum safe water depth, calculated by adding the vessel's draft, UKC, and other factors

Cross Track Distance

The maximum allowable deviation from the planned route before triggering an alarm

Turning Radius

The minimum turning radius of the vessel, used to ensure safe maneuverability along the route


Applying Necessary Route Modifications

If the Route Check identifies issues, sailors may need to alter the route for safety. This might involve shifting waypoints, steering clear of hazards, or implementing additional safety precautions. ECDIS facilitates easy route modifications and updates, enabling sailors to make these adjustments swiftly.


By doing thorough route checks and safety analyses, sailors use ECDIS's advanced features to improve their awareness, spot risks, and make better routes. This careful planning is key for keeping maritime operations safe and efficient.

Optimizing Routes for Efficiency and Cost-Effectiveness

In the maritime industry, optimizing ship routes is essential for improving efficiency and reducing costs. By utilizing advanced voyage planning software and analyzing factors such as weather, currents, and ship speed, ship owners can identify the most effective routes, resulting in smoother and more economical operations.


Route planning for ships has significantly evolved with the advent of new technology. Tools like NAPA Voyage Optimization and Voyage Optimizer leverage AI to create fast, environmentally friendly, and profitable routes. These tools employ intelligent learning to select optimal routes based on weather, speed, and performance, enhancing the accuracy and efficiency of ship operations.


A major advantage of optimizing ship routes is the reduction of fuel consumption and costs. By considering factors such as ship speed, engine load, and fuel type, planning software can determine the most cost-effective routes. For instance, NAPA Voyage Optimization assists in planning routes with various objectives, such as timely arrival, maintaining a steady speed, or minimizing expenses.


Optimizing ship routes also helps the environment. By using less fuel and adjusting engine speed, it cuts down on harmful emissions.


Benefits of Ship Routing Optimization

Impact

Reduced Fuel Consumption

2% to 4% less fuel used and less GHG emissions

Improved Safety

Finds safe routes and follows ECDIS rules

Enhanced Efficiency

Makes things run smoother and helps control when you arrive

Cost Savings

Reduces costs by planning better and optimizing routes


Working with maritime experts can really help improve route efficiency. They look at how ships perform, find ways to get better, and suggest the best routes for specific needs and limits.


By using ship routing optimization and the latest voyage planning software, the maritime industry can get better at what it does. It can save money, work more efficiently, and be kinder to the planet. As tech keeps getting better, it's important for ship owners and operators to keep up with new ways to plan routes and stay ahead in the global market.


Monitoring and Updating Routes During the Voyage

Once a ship sails, keeping it on the right path is key. Voyage monitoring systems help with this. They track the ship's location and adjust plans as needed for safety and efficiency.


ECDIS is a key tool for monitoring. It shows the ship's position and warns of dangers. This helps the crew stay on course and avoid risks.


Real-Time Tracking and Position Monitoring

Real-time tracking uses many tools and sensors with ECDIS. These include:

  • Global Positioning System (GPS) receivers

  • Automatic Identification System (AIS) transponders

  • Radar and other collision avoidance systems

  • Depth sounders and echo sounders

  • Speed and distance measuring equipment


ECDIS updates the ship's position and speed from this data. It shows this on electronic charts. This helps the crew see where they are and spot problems early.


Adapting to Changing Conditions and Circumstances

Ships face unexpected challenges at sea. These can be:

  • Changes in weather, like storms or high winds

  • Changes in ocean currents and tides

  • Changes in traffic or port schedules

  • Mechanical issues or equipment failures


Being able to change the route is key to safety and efficiency. ECDIS lets the crew quickly adjust the route. They can add or remove waypoints, change speed, or follow new rules. This keeps the ship safe while avoiding dangers.


Scenario

ECDIS Response

Approaching storm

Alter course to avoid severe weather

Unexpected marine traffic congestion

Adjust speed and route to maintain safe distance

Port closure or schedule change

Modify route to accommodate new port of call

Equipment malfunction or failure

Adapt route to facilitate repairs or emergency response


Good communication between the ship and shore is vital for safety. Voyage monitoring systems and traffic management tools help everyone stay updated. This way, they can make quick, informed decisions.


The ability to monitor and adapt routes during the voyage is a testament to the power of ECDIS technology in enhancing maritime safety and efficiency.

The maritime world is always changing. Voyage monitoring systems and flexible planning are more important than ever. By using these tools, ship operators can handle today's maritime challenges better.


Best Practices for ECDIS Route Planning

To get the most out of the ECDIS navigation system, it's key to plan routes well. Following these guidelines helps maritime pros use the electronic chart display right. It also lowers risks during navigation.


Regularly Updating Electronic Navigational Charts (ENCs)

Keeping ENCs up-to-date is vital for ECDIS route planning. ENCs are the base for accurate navigation and making good decisions. Updating them often means the crew gets the latest info on water depths, hazards, and new rules. This lowers the chance of running into unexpected problems on the voyage.


Maintaining Accurate System Configuration

Getting the ECDIS system set up right is key for safe and accurate route planning. This means making sure GPS, gyrocompass, and speed log data is correct. Also, setting safety limits like cross-track distances and depth contours helps spot hazards. Regular checks on the ECDIS hardware and software keep it running smoothly.

Configuration Element

Importance

Sensor Inputs

Accurate position, heading, and speed data for precise navigation

Safety Parameters

Identification of potential hazards along the planned route

Hardware and Software Maintenance

Ensuring optimal performance and reliability of the ECDIS system

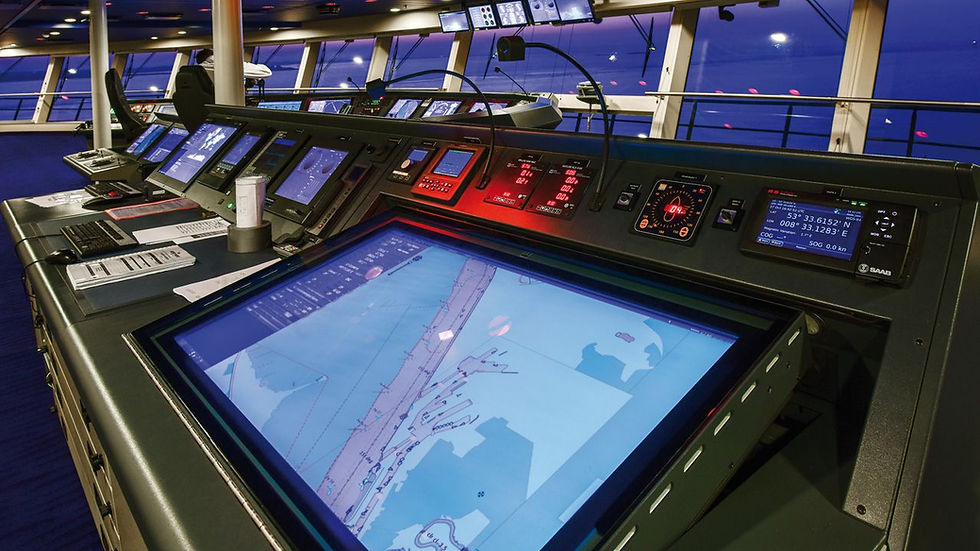

A ship's ECDIS on the bridge
A ship's ECDIS on the bridge

Ensuring Proper Crew Training and Familiarization

The crew's expertise and understanding of the ECDIS system are essential. They must know how to operate it, recognize its limitations, and identify critical information. Proper training in interpreting electronic charts and managing alarms is vital. Regular drills ensure they remain prepared for various scenarios.


More than 90% of maritime professionals view passage planning in ECDIS as essential for ensuring the safety and efficiency of ship voyages.

Consulting maritime experts is highly beneficial. They provide insights and guidance on training and identifying skill gaps. These professionals ensure that training aligns with the latest standards and complies with SOLAS regulations.


By emphasizing these best practices, maritime professionals can enhance the safety and efficiency of their voyages. Keeping ENCs updated, configuring the system correctly, and effectively training the crew are crucial. These measures help minimize risks and improve operations in the maritime industry.


Integration of ECDIS with Other Bridge Systems

ECDIS can be easily linked with other key navigation tools on the bridge. This makes situational awareness and ship routing better. It works well with radar, Automatic Identification Systems (AIS), and weather routing software. This creates a full and efficient way to plan voyages.


Interfacing with Radar and AIS

Linking ECDIS with radar lets you see radar targets on the electronic chart. This helps in avoiding collisions. It helps navigators spot potential dangers and keep a safe distance from other ships.


Adding AIS data to ECDIS shows real-time info on nearby ships. This includes their location, speed, and direction. This makes navigating busy areas safer and more confident.


An electronic chart display and information system (ECDIS) allows the integration of other operational data, such as ship's course and speed, depth soundings, automatic identification systems (AIS) information, and radar data into the display.

Incorporating Weather Routing Software

Weather routing software can be added to ECDIS for better route planning. It looks at weather conditions now and in the future. This helps find the safest and most efficient route for a trip.


This means routes can change in real-time to avoid bad weather and save fuel. It makes planning a trip more dynamic.


Benefit

Description

Reduced Voyage Planning Time

A connected ECDIS can reduce the time taken for voyage planning from 4-5 hours to about 30 minutes.

Fuel Savings

Ship owners can save 5-10% in fuel expenses annually through better fleet performance management facilitated by a connected ECDIS.

Improved Problem Resolution

The process-driven design enabled via connectivity helps in reducing process-related questions, which are the primary cause of most problems, leading to faster problem resolution.


By linking ECDIS with other bridge systems, ship owners and operators can make voyages safer and more efficient. This approach helps follow international rules and find the best routes. It also saves money and is better for the environment.


Planning ship routes and voyages is essential for safe and efficient sea travel. Central to this process is the Electronic Chart Display and Information System (ECDIS). This system integrates navigation tools and data to enhance decision-making. With ECDIS and expert maritime guidance, ships can navigate safely and accurately across the seas.

Effective route planning considers various factors, such as the ship, its cargo, the weather, and regulations. ECDIS aids navigators in examining these factors in detail, allowing them to create routes that are both safe and efficient. Crews can remain vigilant and adjust plans as necessary with safety settings and alarms.


Proper voyage planning and execution are critical to the safety of life at sea, safety and efficiency of navigation, and protection of the marine environment.

Monitoring the ship's progress is crucial to successful voyage planning. ECDIS enables ships to track their path in real-time, ensuring they stay on course and on schedule, even when faced with unexpected challenges like adverse weather or traffic.


Aspect

Consideration

Vessel Characteristics

Size, draft, speed, maneuverability

Cargo Requirements

Type, weight, special handling needs

Environmental Factors

Weather, tides, currents, ice conditions

Regulatory Constraints

SOLAS, MARPOL, local regulations


A ship officer navigating using ECDIS
A ship officer navigating using ECDIS

To maximize the benefits of ECDIS and enhance route planning, ship owners should prioritize crew training and system maintenance. Updating electronic charts and software provides navigators with the most current information. By doing this and taking a proactive approach to planning, the shipping industry can boost safety, efficiency, and environmental stewardship globally.


Conclusion

ECDIS technology has transformed how ships plan their routes and voyages, simplifying tasks for mariners and enhancing ship operations. Currently, 80% of mariners prefer ECDIS for voyage planning over traditional paper charts, and 90% of ship owners report increased operational efficiency.


ECDIS has reduced workload, heightened awareness, and ensured compliance with international regulations, becoming essential for safe and efficient navigation. To fully leverage ECDIS, maritime professionals must understand its functionality and best practices.


This involves keeping electronic charts current, ensuring proper system settings, and training the crew. Ship masters play a vital role in ensuring their crew is well-versed in ECDIS. By staying updated with new technology and best practices, maritime operators can enhance route planning, reduce fuel consumption, and minimize accident risks.


The maritime industry is continually evolving. It's crucial to embrace new technology while maintaining traditional skills. Many training centers face challenges updating their ECDIS programs, but integrating both digital and traditional methods is essential. By combining ECDIS with other systems like radar and AIS, and utilizing weather routing software, ships can improve navigation.


Monitoring ECDIS and adapting it during voyages ensures safer, more efficient, and compliant operations, contributing to the success of the maritime industry.


FAQ

What is ECDIS and how does it enhance ship route planning?

ECDIS, or Electronic Chart Display and Information System, is a computer system that integrates real-time ship data with electronic charts. This facilitates safer and more efficient voyage planning by providing detailed information and automatic calculations.


What are the key components of an ECDIS system?

An ECDIS system includes electronic charts, position sensors like GPS, and voyage planning tools. These components work together to deliver accurate and up-to-date information for safe navigation and efficient route planning.


How does efficient route planning contribute to maritime safety and cost-effectiveness?

Efficient route planning with ECDIS enhances maritime safety by identifying hazards and reducing risks, ensuring compliance with international regulations. It also saves fuel and reduces costs by selecting optimal routes based on weather and ship performance.


What are the steps involved in creating a route using ECDIS?

To create a route with ECDIS, select waypoints and define the track using graphical and table editors. Then, set safety limits like cross-track error and incorporate tidal and current data to enhance route safety and accuracy.


How are route checks and safety analyses conducted in ECDIS?

Route checks in ECDIS involve identifying hazards using the "Route Check" or "Safety Check" function. The route is evaluated against the ship's draft and company regulations. Any errors or warnings are carefully reviewed, and adjustments are made to minimize risks and adhere to safety standards.


What factors are considered when optimizing routes in ECDIS?

When optimizing routes, factors such as weather, currents, and ship performance are considered. Advanced planning software and collaboration with maritime experts help identify the most efficient and cost-effective routes, reducing fuel consumption and expenses.


How does ECDIS enable real-time monitoring and route updating during a voyage?

ECDIS monitors the ship's position and potential hazards in real-time, allowing for quick detection of deviations. If conditions change, the route can be adjusted accordingly. Effective communication between the bridge and shore support is crucial for maintaining safety and adapting to changes.


What are some best practices for ECDIS route planning?

Best practices for ECDIS route planning include regularly updating electronic charts for the latest information, ensuring proper system configuration, and providing thorough crew training. Consulting maritime experts can help address skill gaps and comply with current standards.


How can ECDIS be integrated with other bridge systems for enhanced navigational safety?

ECDIS integrates with systems like radar and AIS for improved situational awareness. Radar targets can be displayed on the electronic chart to prevent collisions, while AIS provides real-time information on nearby vessels, enhancing navigation safety in congested areas. Utilizing weather routing software also aids in planning optimal routes based on current and forecasted weather conditions.


Source Links

Comments


bottom of page
