Ever ponder how the maritime sector keeps environmental rules and prevents oil spills in our seas? The key lies in Oil Discharge Monitoring Equipment (ODME) systems. These advanced tools measure and manage oily water from ships. They ensure MARPOL rules are followed, safeguarding our marine life.
ODME systems are mandatory for oil tankers over 150 gross tons, as MARPOL Annex I dictates. They monitor water discharge for oil content, keeping it under 30 litres per nautical mile. This strict control aids in preventing marine pollution and protecting our oceans.
The parts of an ODME system work together seamlessly. The oil content meter checks oil levels, while the flow meter tracks discharge rates. The computing unit then controls the overboard valve, opening only when discharge meets limits. This precise coordination helps ships follow MARPOL rules, avoiding fines and legal issues.
Key Takeaways
ODME systems are vital for stopping marine pollution by accurately monitoring and managing oil discharge from ships.
MARPOL Annex I requires ODME systems on oil tankers of 150 gross tonnage and above.
ODME systems ensure compliance with oil discharge limits, such as the instantaneous rate of discharge not exceeding 30 litres per nautical mile.
The components of an ODME system, including the oil content meter, flow meter, computing unit, and overboard valve control system, work together to maintain strict control over oil discharge.
Proper maintenance, calibration, and record-keeping of ODME systems are crucial for ensuring accurate performance and regulatory compliance.
Introduction to ODME Systems
Oil Discharge Monitoring Equipment (ODME) systems are crucial for adhering to MARPOL Annex I regulations and preventing oil spills. They continuously monitor the oil content in discharged water from oil tankers. This ensures that the discharge stays within the limits set by international maritime laws.
The importance of effective oil content monitoring and control has grown significantly. The shipping industry is now focused on sustainable maritime practices and reducing its environmental footprint. ODME systems are key in this effort, allowing ship operators to strictly control oily water discharge.
MARPOL Regulations for ODME (Oil Discharge Monitoring)
The International Convention for the Prevention of Pollution from Ships (MARPOL) outlines the rules for oil discharge monitoring. MARPOL Annex I mandates that all oil tankers of 150 gross tonnage or more must have an approved ODME system. These regulations have been updated to address new challenges, like the growing use of biofuels in shipping.
MARPOL Regulation | Key Requirements |
MEPC resolution 240(65) | Amended MEPC 108(49) due to biofuels, effective from January 1, 2016 |
Discharge Limits | Oil discharge limited to 30 litres per nautical mile, total quantity not exceeding 1/30000 of the total cargo quantity |
ODME Equipment | Must include an oil content monitor, flow meter, computing unit, and control valve |
Data Retention | ODME data must be retained on board for a minimum of three years |
Importance of ODME Systems in Preventing Marine Pollution
ODME systems have been a major advancement in controlling shipboard pollution. They continuously monitor the oil content in discharged water, preventing accidental or intentional oil spills. These spills can severely harm marine ecosystems. Key benefits of ODME systems include:
Ensuring compliance with MARPOL regulations
Reducing the risk of oil pollution incidents
Enabling early detection and response to potential oil spills
Promoting sustainable maritime practices and environmental stewardship
As the shipping industry evolves, with a possible shift to biofuels, ODME systems must adapt. This ensures ongoing compliance with regulations and protects our oceans.
Components of an ODME System
An Oil Discharge Monitoring and Control (ODME) system is vital in preventing marine pollution from ships. It ensures that oily water mixtures from cargo spaces, bilge areas, and oily water separators meet strict International Maritime Organization (IMO) regulations. The ODME system has four key components. These work together to monitor, measure, and control the oil content in discharged water.
Oil Content Meter
The oil content meter is the core of the ODME system. It continuously analyzes the water to be discharged, ensuring it doesn't exceed 15 parts per million (ppm). Advanced oil detection techniques, like oil-water interface sensors or bilge alarms, are used to accurately measure oil concentration.
Flow Meter
The flow meter measures the oily water mixture's flow rate. It sends accurate flow data to the computing unit. This data is used to calculate the total oil discharged over time. The flow meter is crucial for meeting IMO's discharge rate limits.
Computing Unit

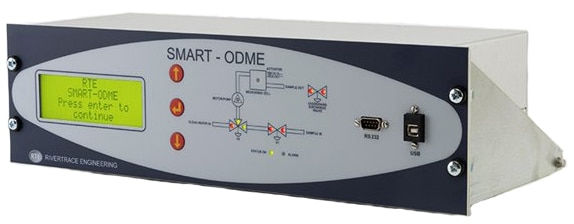

The computing unit is the ODME system's brain. It processes data from the oil content meter and flow meter. It calculates the oil discharge rate and total quantity discharged in real-time. The computing unit compares these values against limits and triggers alarms or actions if exceeded. Advanced systems, like Rivertrace's Smart ODME, meet MEPC.108(49) requirements for slop water and ballast discharge.
Overboard Valve Control System
The overboard valve control system is the last defense against illegal oil discharges. It's connected to the computing unit and stops discharge when limits are reached. This system ensures the ship complies with IMO regulations, avoiding fines and penalties by authorities.
How ODME Systems Work
Oil Discharge Monitoring Equipment (ODME) systems are vital in preventing marine pollution. They continuously monitor and control oily water discharge from ships. These advanced oil discharge monitoring technologies ensure ships follow MARPOL regulations. These regulations limit oil discharge to 30 liters per nautical mile and restrict total discharge to 1/30000 of cargo carried.
At the core of an ODME system is the oil content meter. It measures oil concentration in discharged water in parts per million (PPM). A sample pump draws the oily mixture from the discharge line. It then sends it to the analyzing unit for oil content monitoring. Meanwhile, a flow meter calculates the flow rate in m3/hr, crucial data for overboard discharge monitoring and control.
The computing unit processes data from the oil content meter and flow meter. It calculates the Instantaneous Rate of Discharge (IRD). If IRD exceeds the 30 L/NM limit, the system automatically closes the overboard discharge valves. This prevents further discharge, ensuring the ship complies with MARPOL regulations.
Component | Function |
Oil Content Meter | Measures oil concentration in PPM |
Flow Meter | Calculates flow rate in m3/hr |
Computing Unit | Processes data and controls valves |
Solenoid Valve Assemblies | Control overboard discharge valves |
Proper ODME calibration and operation are crucial for compliance and environmental protection. Regular maintenance, including annual checks and calibration every five years, is necessary. By investing in advanced oil discharge monitoring technology and following best practices, ship owners and operators can safeguard the marine environment. They also avoid costly fines and legal consequences.
Regulatory Requirements for Oil Mixture Discharge from Cargo Space
The discharge of oil or oily mixtures from cargo spaces is strictly regulated to safeguard the marine environment. These regulations detail specific requirements for the distance from land, the rate of discharge, and the total quantity allowed. These measures are designed to protect our oceans and the life within them.
Distance and Location Restrictions
Oil tankers are not allowed to discharge oil or oily mixtures unless they are at least 50 nautical miles from land. This rule applies to all vessels en route. Furthermore, discharges are forbidden in designated special areas. These include the northwest European waters, Baltic Sea area, Mediterranean Sea area, Black Sea area, and other specified regions.
Instantaneous Rate of Discharge Limits
The rate at which oil or oily mixtures can be discharged is capped at 30 litres per nautical mile. This limit is set to prevent excessive oil concentration in the water. It helps to minimize the environmental damage caused by such discharges.
"The instantaneous rate of discharge for oil or oily mixtures from cargo spaces must not exceed 30 litres per nautical mile."
Total Quantity of Discharge Restrictions
The total amount of oil or oily mixtures that can be discharged is also regulated. For tankers built before December 31, 1979, the limit is 1/15,000 of the total cargo residue. For those built after December 31, 1979, the limit is 1/30,000 of the total cargo residue.
Tanker Build Date | Total Quantity of Discharge Limit |
On or before December 31, 1979 | 1/15,000 of total cargo residue |
After December 31, 1979 | 1/30,000 of total cargo residue |
Adhering to these regulations is essential for oil tankers to reduce their environmental footprint and avoid legal repercussions. By following the set guidelines for distance, rate, and quantity, tankers can discharge oil mixtures responsibly and safely.
Recording and Reporting Requirements for ODME Systems
To meet MARPOL regulations, Oil Discharge Monitoring and Control Systems (ODME) must follow strict guidelines. These rules ensure accurate tracking of oil discharge activities. They help identify any irregularities and promote environmentally friendly practices in the maritime sector.
Continuous Recording of Discharge Data
ODME systems record essential parameters like discharge rate, ship location, and date and time. They also track the total quantity discharged and oil content. This data is vital for monitoring MARPOL compliance and spotting any accidental discharges. It's noted that 75% or more of petroleum oil in bio-fuel blends requires ODME systems that meet MEPC.108(49) standards.
Oil Record Book
Ships must keep an Oil Record Book to document oil discharge activities. Part I of the Oil Record Book should be stored onboard for at least three years after the last entry. Entries for ships with an IOPP Certificate must be in English. The book details oil residues collected, transferred, or disposed of, along with disposal methods.
It also records the quantity of bilge water discharged, transferred, or disposed of. This includes the time and method of discharge. Such detailed records are crucial for auditing and verification purposes.
Data Retention for a Minimum of Three Years
ODME records must be stored onboard for at least three years. This ensures data availability for auditing and verification. Certificates for type approval of oil content meters and monitoring systems must be onboard. The approved Operating and Maintenance manual for the oil discharge monitoring and control system is also required.
Compliance with these requirements is essential for maintaining the integrity of oil discharge operations. Regular audits and inspections verify the accuracy and completeness of recorded data. This ensures ships follow MARPOL regulations and industry best practices.
Maintenance and Calibration of ODME Systems
Ensuring the accuracy of Oil Discharge Monitoring Equipment (ODME) systems is vital. This is achieved through regular maintenance and calibration. Annual verification and cell renewal every five years are key to maintaining system reliability and performance.
Resolution MEPC.240(65) mandates the onboard storage of spare parts for ODME systems. This is to prevent downtime and ensure continuous operation. By January 1st, 2016, ODME systems must also be certified for Biofuels. Annual calibrations -by authorized vendors- verify the systems' accuracy and compliance with standards.
Annual System Verification and Maintenance
ODME systems need annual checks to ensure they function correctly and meet IMO regulations. These checks involve:
Inspecting system components for wear and tear
Verifying sensor accuracy
Testing alarms and control systems
Calibrating the oil content meter
5-Yearly Cell Renewal and Calibration
Every five years, ODME systems undergo a detailed maintenance process. This includes:
Replacing the oil content meter cell
Full system calibration
Verifying type approval certificates
Updating software and firmware, if needed
Spare Parts Requirements
Carrying specific spare parts onboard is recommended to avoid downtime. This ensures continuous compliance. The recommended spare parts include:
Component | Recommended Quantity |
Oil content meter cell | 1 |
Sample pump | 1 |
Solenoid valves | 2 |
Printed circuit boards | 1 set |
Consequences of Non-Compliance with ODME Regulations
Non-compliance with Oil Discharge Monitoring Equipment (ODME) regulations set by MARPOL can have severe repercussions for ship owners and operators. Vessels violating these regulations face significant maritime pollution fines, ship detentions, and even criminal charges in some countries. The environmental damage from uncontrolled oil discharge is immense, highlighting the importance of adhering to ODME regulations.
MARPOL violations often stem from inoperative or bypassed Oily Water Separators (OWS), resulting in illegal oily discharges. The penalties for such violations can be substantial, ranging from thousands to millions of dollars. In extreme cases, crew members may face imprisonment. Non-compliance can also lead to probation and increased scrutiny in ports, disrupting operations and tarnishing a company's reputation.
To circumvent these consequences, it is vital to ensure all oily water separation, monitoring, and control equipment is functioning correctly. This entails annual system checks and calibrations every five years to uphold IMO standards. Proper maintenance and record-keeping, including documentation of system tests, repairs, and routine maintenance in the Safety Management System (SMS) records, are also critical.
Bilge water management: No excessive oil should be present in the bilges, and cleaning substances that interfere with monitoring and control systems should not be used.
Discharge monitoring protocols: Receipts for all shore-side discharges of oil and oily wastes should be requested to account for the amount, type, date, and place of discharge.
Manual monitoring protocols: In cases of ODME system failure, manual monitoring procedures should be followed strictly, including immediate cessation of effluent discharge into the sea and proper notifications to relevant authorities.
By following MARPOL regulations and maintaining a proactive stance on ODME compliance, ship owners and operators can sidestep costly fines, ship detentions, and the environmental damage caused by oil discharge. Investing in reliable ODME systems, regular maintenance, and crew training is crucial for sustainable ship operation and ocean protection.
Conclusion
In conclusion, Oil Discharge Monitoring and Control (ODME) systems are vital for marine environmental protection and MARPOL compliance. These systems are key in monitoring and controlling oil-contaminated water discharge from ships. They help prevent marine pollution and keep our oceans healthy.
ODME systems continuously check the oil content in effluent and stop discharge when limits are hit. This ensures ships follow MARPOL's strict rules. The role of ODME systems is critical for sustainable shipping and protecting marine ecosystems.
Ship operators and crews must focus on maintaining, calibrating, and operating ODME systems effectively. Regular training and understanding of the system's parts and functions are crucial. This ensures smooth operation and quick responses to any problems. By investing in ODME system upkeep, the shipping industry shows its dedication to marine protection and MARPOL compliance.
FAQ
What is the purpose of ODME systems in the maritime industry?
ODME (Oil Discharge Monitoring Equipment) systems are crucial for ships. They measure and control oily water discharge, ensuring MARPOL compliance and preventing pollution. These systems protect marine ecosystems from oil pollution harm.
What are the main components of an ODME system?
An ODME system includes an oil content meter for water analysis, a flow meter for flow rate measurement, a computing unit for rate and quantity calculation, and an overboard valve control system for discharge control.
Which ships are required to have an ODME system installed?
MARPOL Annex I mandates ODME systems for oil tankers over 150 GT. These systems must record discharge data continuously, including rate, quantity, oil content, and time.
What are the regulatory requirements for oil mixture discharge from cargo space?
Oil mixture discharge from cargo space is regulated. The vessel must be en route, at least 50 nautical miles from land, and not in special areas. The discharge rate must not exceed 30 litres per nautical mile, and the total quantity must not exceed 1/30,000 of the cargo's total quantity.
How long must ODME records be stored onboard?
ODME systems must continuously record data. An oil record book must track all discharge activities. Records must be stored onboard for at least three years.
What maintenance and calibration procedures are required for ODME systems?
Regular maintenance and calibration are essential for ODME systems. Annual verification and maintenance, along with 5-yearly cell renewal and calibration, are required. It's recommended to carry spare parts onboard to avoid downtime.
What are the consequences of non-compliance with ODME regulations?
Non-compliance with ODME regulations can result in severe penalties. This includes heavy fines, ship detentions, and reputational damage. Immediate grounding and delays can occur. The environmental impact of uncontrolled oil discharge is devastating to marine ecosystems.
